activated carbon pellets making equipment
|Terms of Trade:||FOB|
|Min. Order:||1 Set/Sets|
|Delivery Time:||30 Days|
|Place of Origin:||China|
Model No.: GFZL

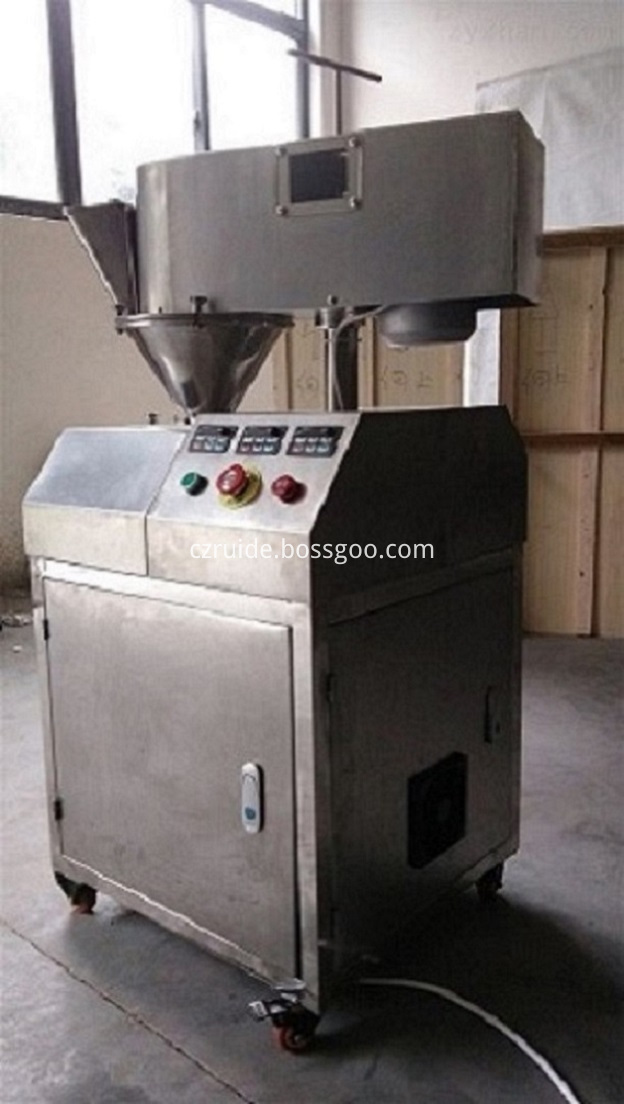

Activated Carbon pellets making equipment Compactor Description
Dry Roller Granulator can make the powder raw material directly to granular products to meet user requirements without any intermediates and additives. after granulating Product granularity uniformity and bulk density increased significantly which not only control the pollution but also reduce the production cost and improve the appearance and liquidity material to facilitate drug next operation process and storage. Dry Roller Pressing Granulator Also can control the solubility, porosity, specific surface area and many other advantages. Because particles compression time is short, long time no heating process, so that the active ingredients of drugs is not easy to be destroyed, especially suitable for wet and heat sensitive drugs.
Dry Roll Pressing Granulating Complete Equipment
activated carbon pellets making equipment Working process
Dry Roller Granulation Machine Put dry powder material to hopper by hand or automatic feeder (pneumatic or motor), then transport them to pressure chamber by screw. Push back the material into high density slice by two high pressure extrusion wheels and make the particles based on customer requirement then granulating finished.
Dry Roller Granulation Machine has the following parts: feeding system, extruding system, front cover, water cooling system, Granulation system, hydraulic system, the body composition, cover plate, rotating screen system etc.
The whole machine is divided into machine body and operation panel, all drive parts and the affiliated facilities in the body, the work of contact with the material in operation panel, multiple sealing isolation between them, work under the completely sealed state and all parts contacting with materials are convenient disassembly cleaning, effectively prevent leakage of dust, reduced the possibility of pollution, reduced the purification area, completely accords with the GMP requirements of pharmaceutical production. We can offer FAT, SAT, IQ, OQ and PQ documents.
activated carbon pellets making equipment working principle
The granulation process of the machine is to press powder material to blocky shapes by a pair of press rollers that moves in opposite directions so as to improve its proportion. And then it is shattered through the secondary granulating mechanism to finally become the qualified material. Besides, it guarantees that the material is clean and it produces no pollution in the granulating process.
The diagram of working principles:Dry Roller Compacting Equipment
Dry Roller Compacting Equipment Technical Parameter
|type||capability kg/h||Hopper volume L||Roll size mm||Max. roll pre-pressure MPa||Max. operation pressure of the hydraulic system MPa||Roll and material conveying speed adjustment mode|
frequency cnversion speed adjustment
frequency cnversion speed adjustment
Changzhou Ruide Drying Engineering Technology Co., Ltd
Changzhou Ruide Drying Engineering Technology Co., Ltd. is a professional manufacturer of drying, mixing, granulating and grinding equipment. Our firm has strong technical force and adopts CAD system, with a modern workshop. Our company is located in the economic center of Yangtze River Delta - Changzhou. Our company has a large-scale manufacturing site. The engineers and technicians account for more than 70% of total staff members. In accordance with the national GMP standard, Our company has a professional team with support from Tianji University, Dalian university of technology and many other famous universities. We keep up with the latest international development within our scope and advocate scientific orientation. Our company is possessed with excellent means of detection and advanced conception of management. We can meet the requirements of domestic and international customers. The production of our equipment conforms strictly to the ISO9001 international quality management system. Their successful application is in the scope of pharmaceutical,chemical, foodstuff industries and so on, which has achieved the internationalization of the product quality. The honest and practical conduct of enterprise, excellent product quality, precise follow-up maintenance service and excellent after-sale service have gained us market and credit.
- Company Name: Changzhou Ruide Drying Engineering Technology Co., Ltd
- Representative: Zhongxing Liu
- Product/Service: Drying Equipment , Mixing Equipment , Granulating Equipment , Sieving Equipment , Grinding Equipment , Conveying Equipment
- Capital (Million US $): 10,000,000RMB
- Year Established: 2015
- Total Annual Sales Volume (Million US $): US$1 Million - US$2.5 Million
- Export Percentage: 71% - 80%
- Total Annual Purchase Volume (Million US $): Below US$1 Million
- No. of Production Lines: 3
- No. of R&D Staff: 5 -10 People
- No. of QC Staff: Fewer than 5 People
- OEM Services Provided: yes
- Factory Size (Sq.meters): 3,000-5,000 square meters
- Factory Location: Jiaoxi Town, Wujin District, Changzhou City, Jiangsu Province
- Contact Person: Mr. Denis
- Tel: 86-519-68231907
